Insat 3A/4B at 93.5°E-DD Direct Plus India

Insat 3A/4B at 93.5°E-DD Direct Plus :Technical data

.
DD Direct Plus network India : 11 490 V DW Asia _ qualitative peak MER=10.2 dB

Insat 4B - Position : 93.5°E - TP : 12 C/12 KU - Lifetime : from 11.3.2007 - 12 years

Insat 4B at 93.5°E-footprint of the KU band: DD Direct Plus_spectrum & quality analysis

Insat 4B at 93.5°E - Indian footprint :DD Direct Plus-measurements taken in the town of Lučenec / central Slovakia
                                     geographical location : Latitude: 48.33° _   Longitude: 19.72°
                                 measurement results are derived from the 3.7 m diameter antenna
                                                        date of measurement : 15.8.2010
                                                                 elevation angle : 2.0°

High Frequency Unit                               point measurements              Insat 4B at 93.5°E
      PF Prodelin 3.7 m                       all research and measurements           Packet DD Direct Plus India

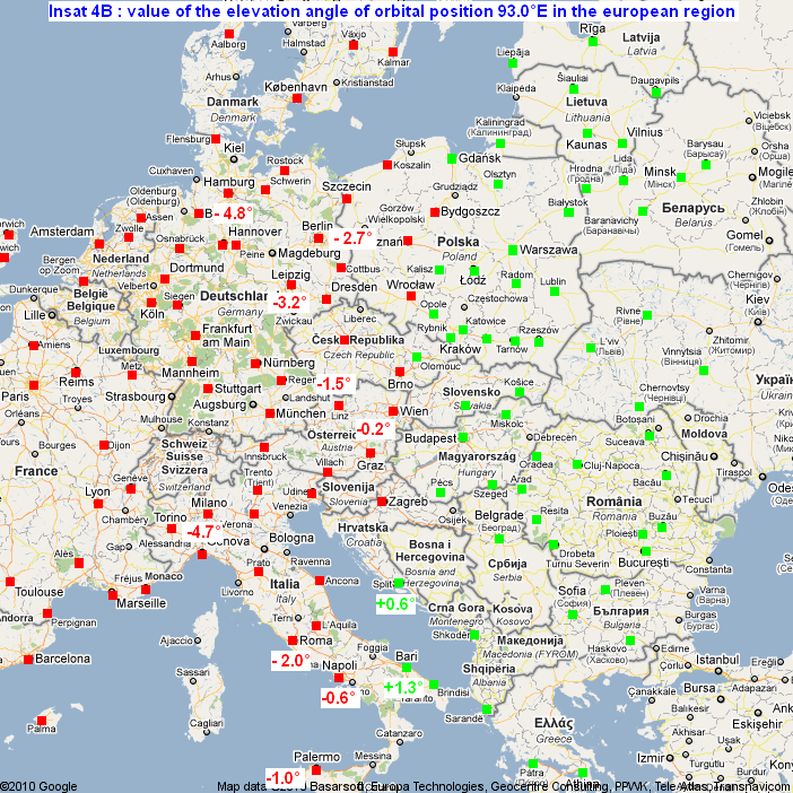

    dxsatcs waveguide line+Norsat 4206 CF      I carried out at this point                  value of the elevation angle
               --- Insat 4B at 93.5°E -Packet DD Direct plus : footprint ---

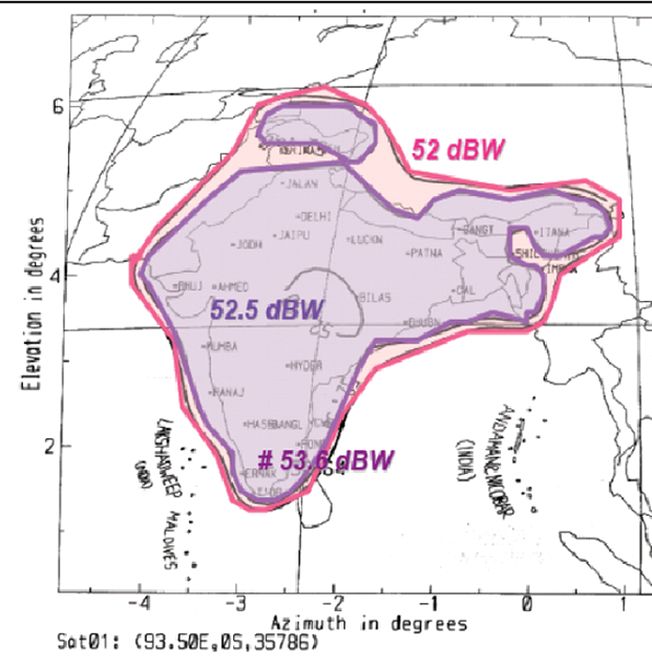

                      --- Insat 4B-theoretical footprint of the KU band ---
                real coverage area : Asia , Middle East , part of Europe
                                                                       click for enlarge

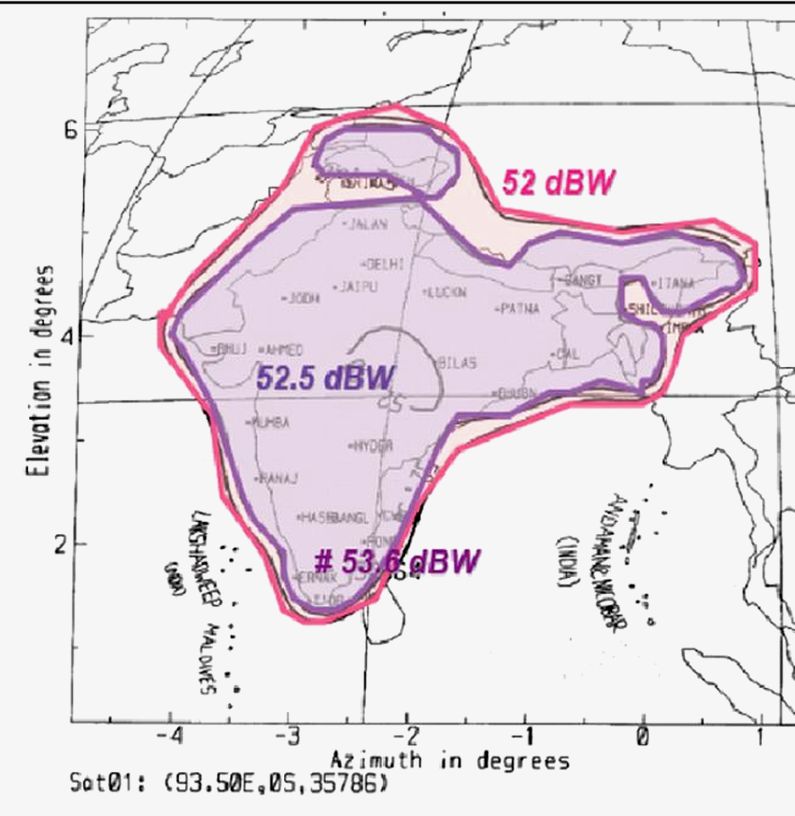

     Insat 4B at 93.5 E-indian footprint-source antrix india-n

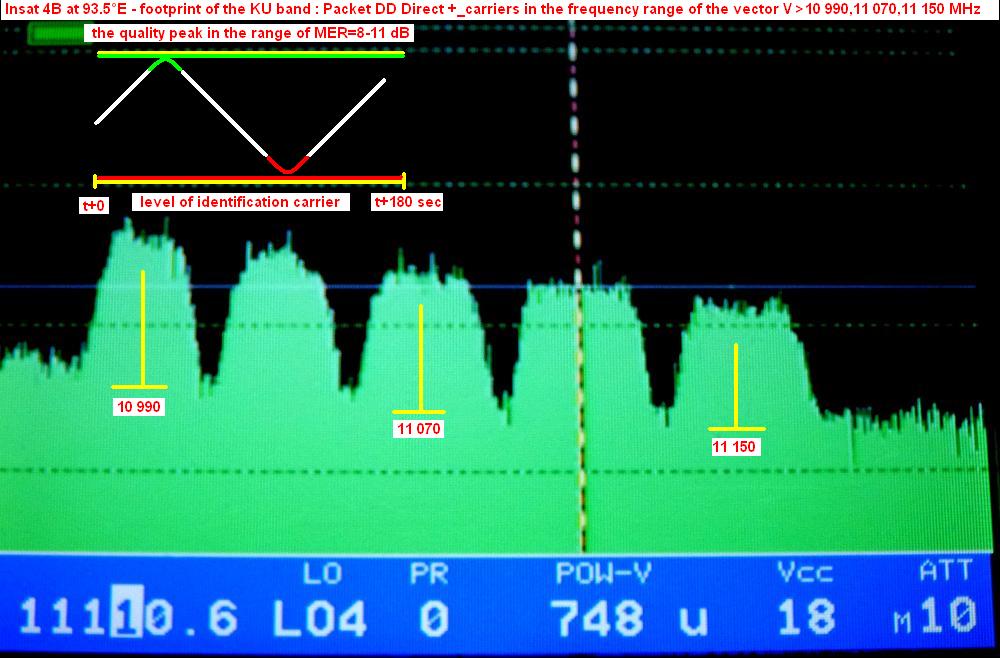

                       --- Packet DD Direct Plus India : spectral analysis & spectral function PEAK MEMORY ---

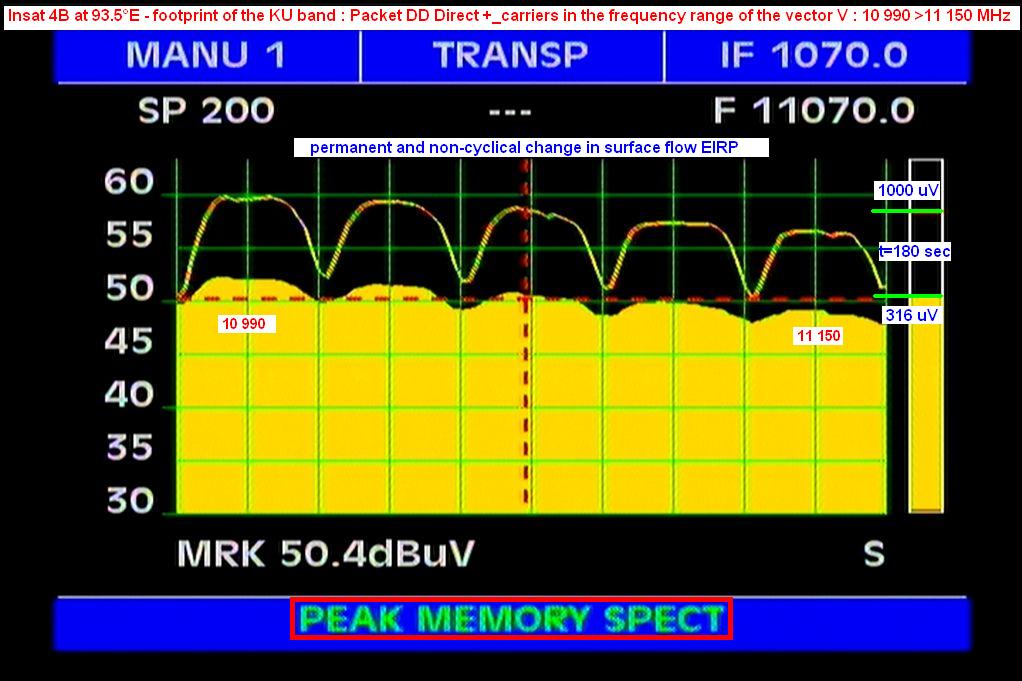

                            DD Direct Plus : spectral analysis No.1 >>>        PEAK MEMORY _ period 180 sec
    V vector : 10 990 , 11 070 , 11 150                permanent oscillation in a wide range

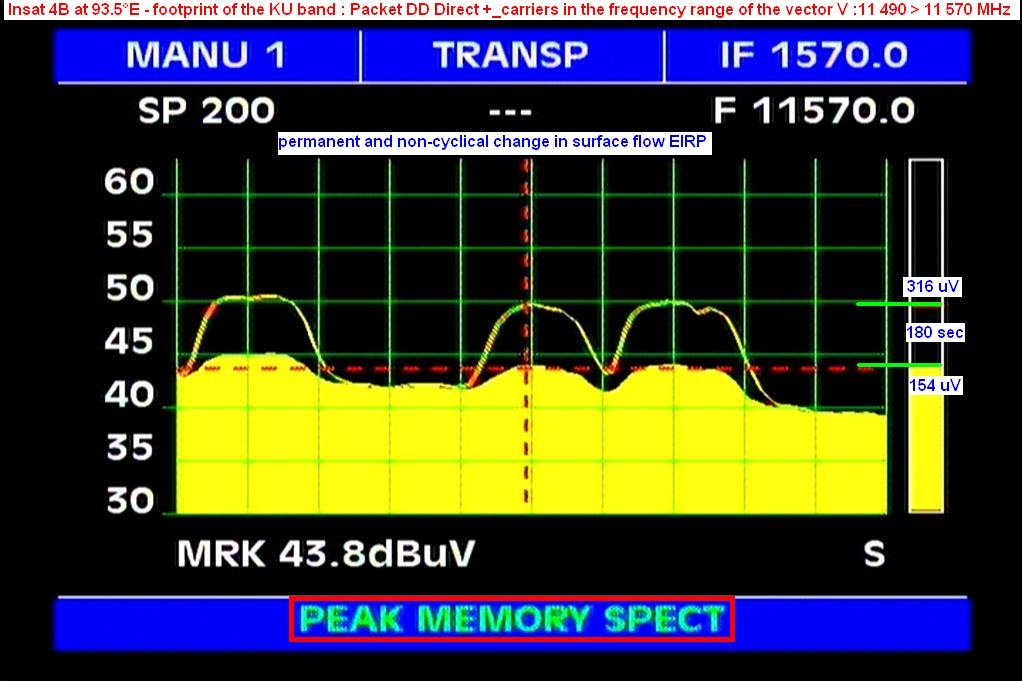

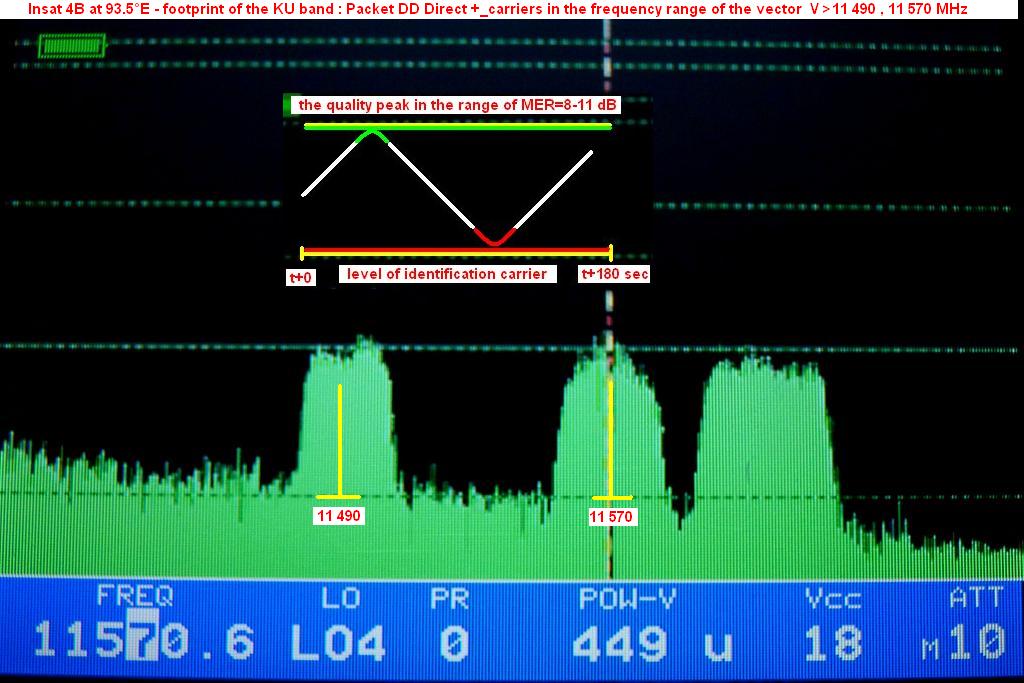

                               DD Direct Plus : spectral analysis No.2   >>>       PEAK MEMORY _ period 180 sec
                            V vector : 11 490 , 11 570             permanent oscillation in a wide range

                                                                   - time of measurement :15.8.2010 -
                                                      - defining the status of reception -

current reception status in Central Europe, after a significant decline in power transmission of 7.7.2010:

EIRP transmission power level in the central European zone fell by an average of 40-45%,which is reflected in the quality
of reception follows.Average reception quality, expressed in the unit MER=9.5-11.5 dB (with occasional peak at MER=15+ dB)
now has fallen to a level within MER=7.5-8.5 dB with occasional peak at MER=11+ dB.Reception is significantly disturbed
by permanent oscillation, which within a period of three minutes, reaching two peaks in the range of amplitude MER from
4 dB-levels of detection to MER=8-11 dB .This is an unstable form of revenue with a high level of variable gain within
MER= +/-3.5 dB _ 180 sec .

--- Insat 4B : measurement results ---

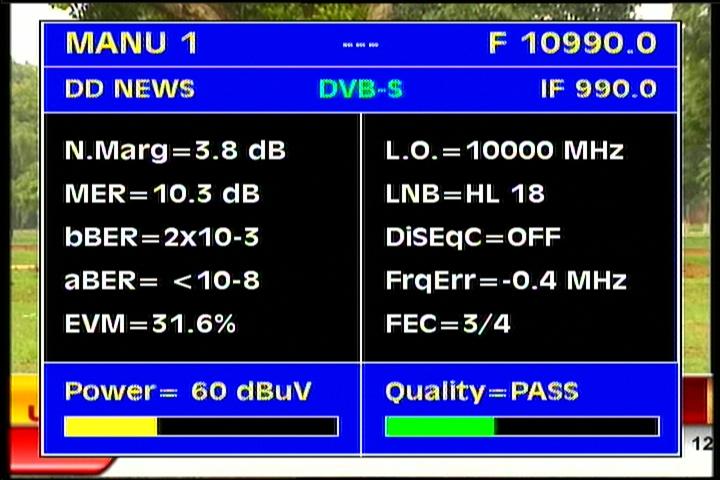

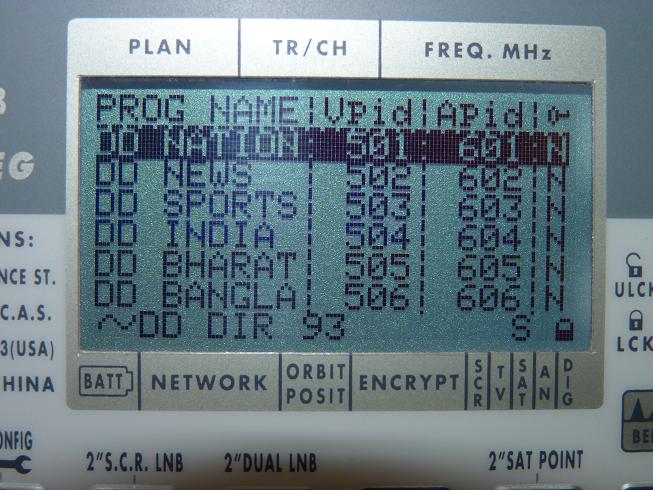

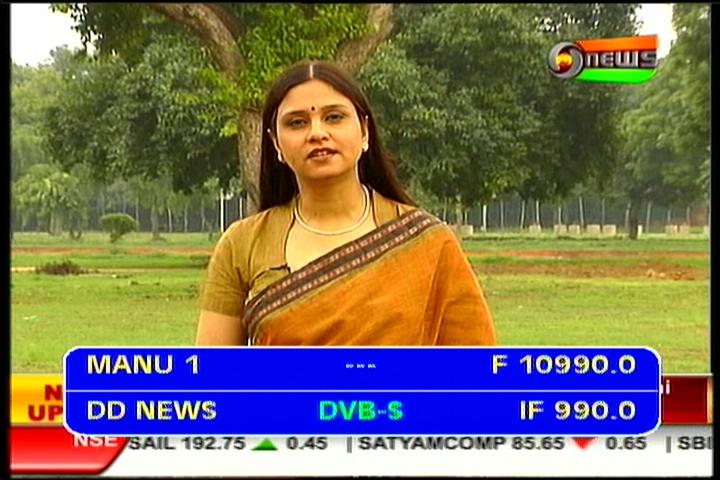

Insat 4B at 93.5°E - KU Asia footprint : 10 990 V DD Direct + India

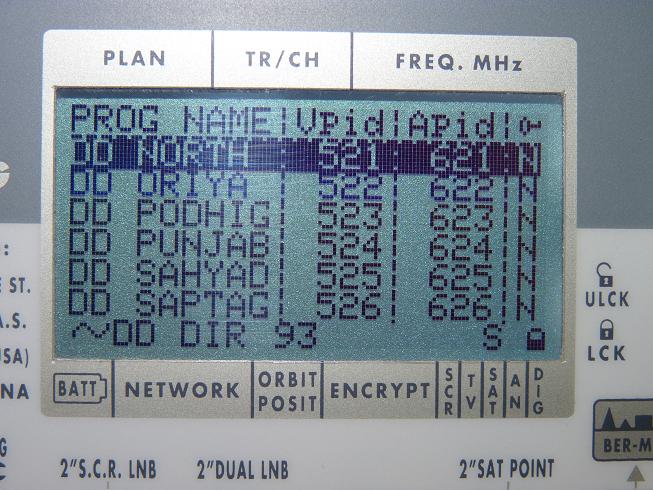

IF data Q data NIT data

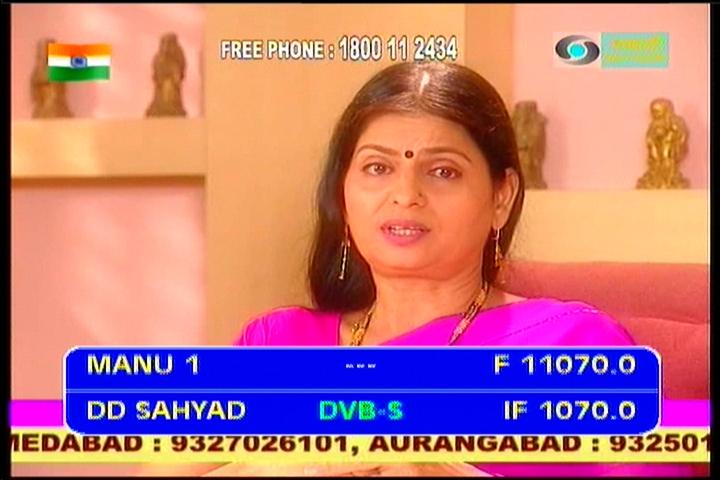

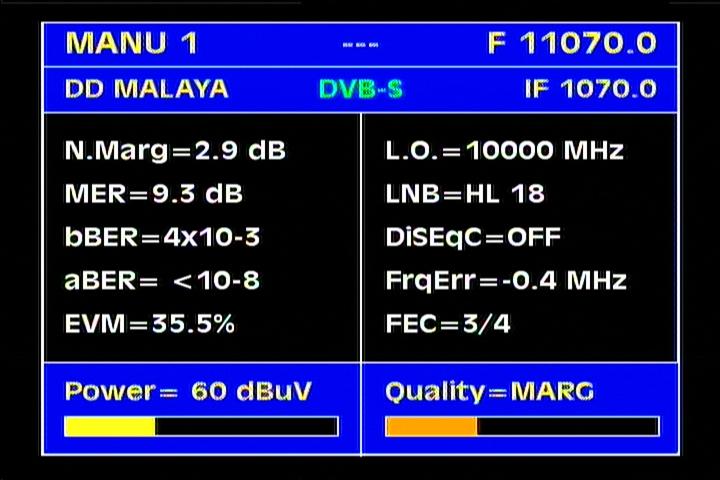

Insat 4B at 93.5°E - KU Asia footprint : 11 070 V DD Direct + India
IF data Q data NIT data

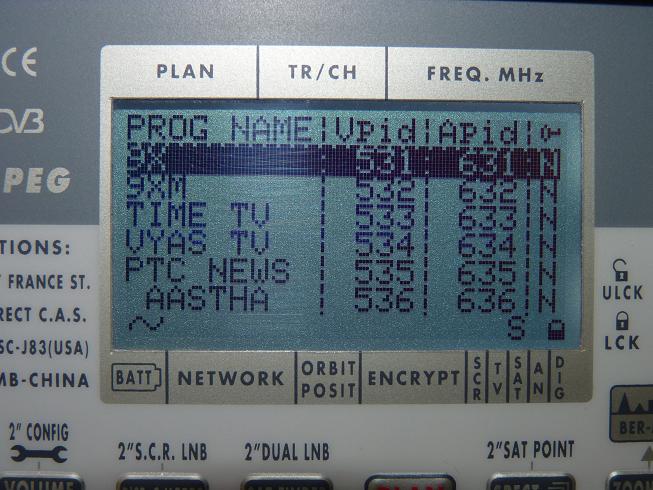

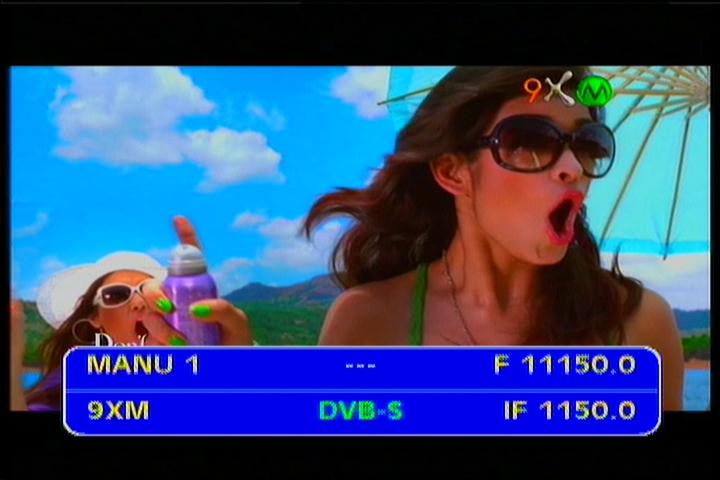

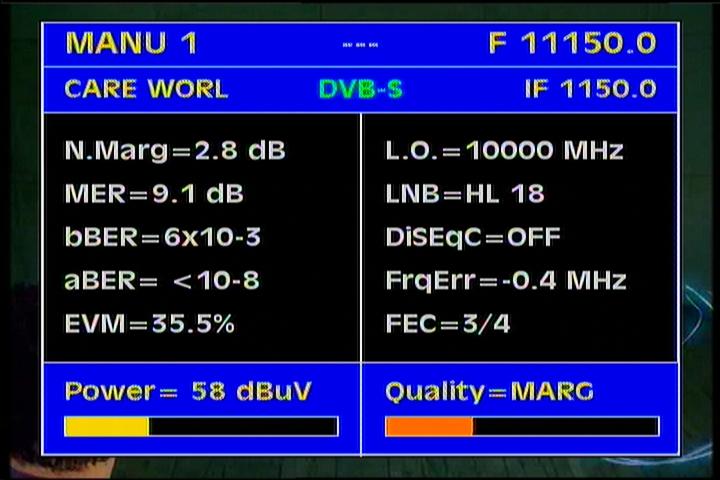

Insat 4B at 93.5°E - KU Asia footprint : 11 150 V DD Direct + India
IF data Q data NIT data

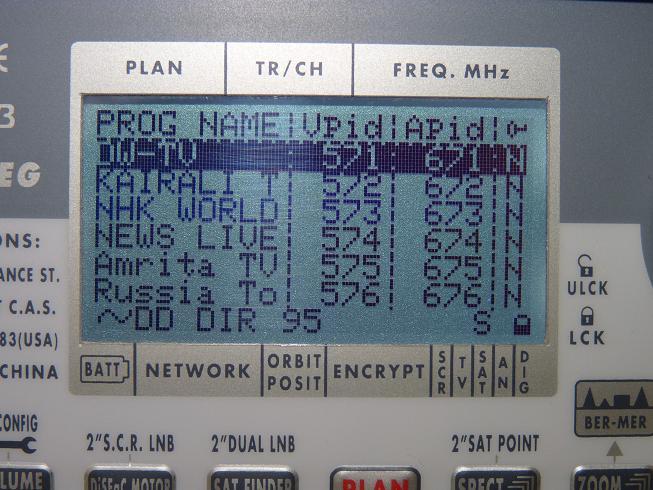

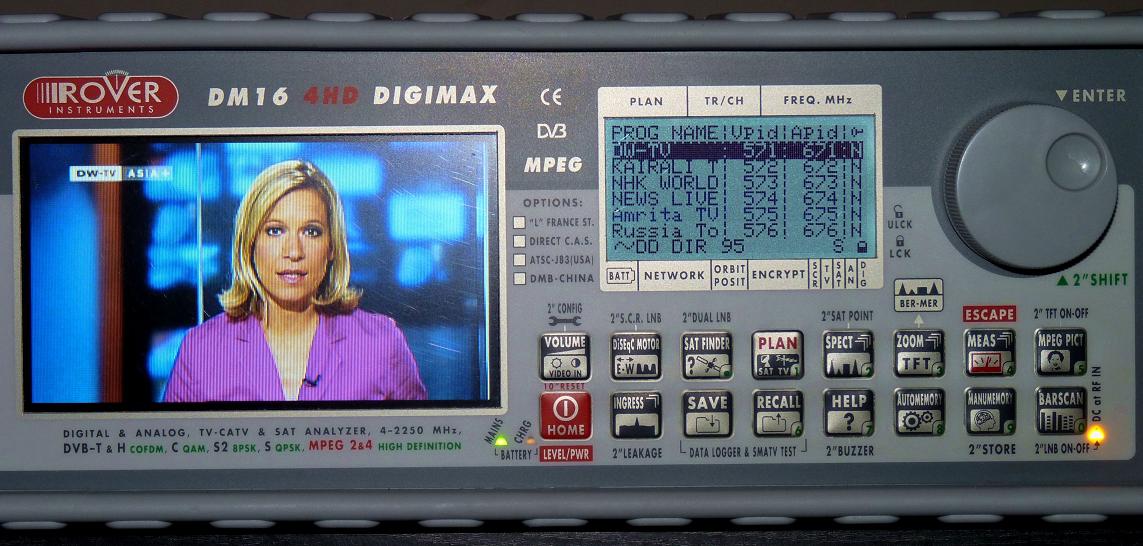

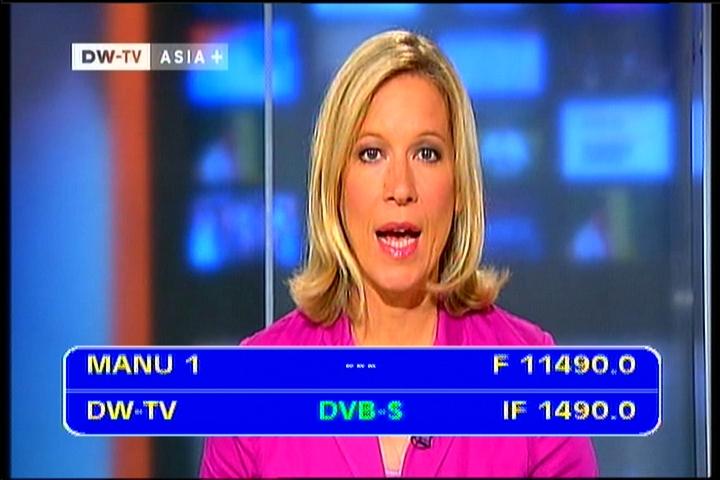

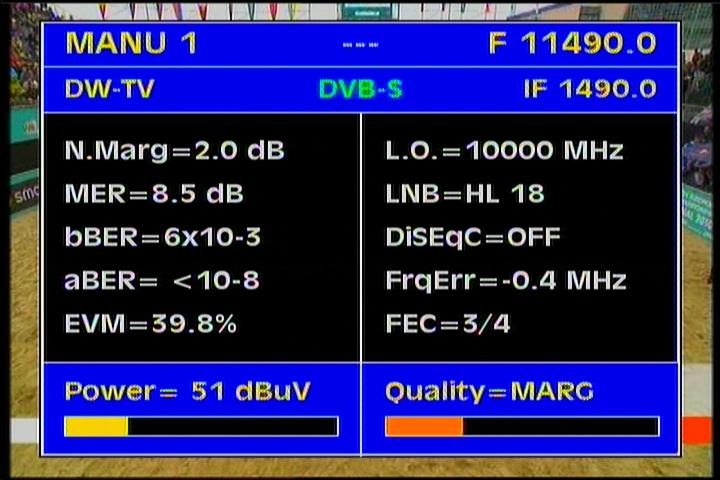

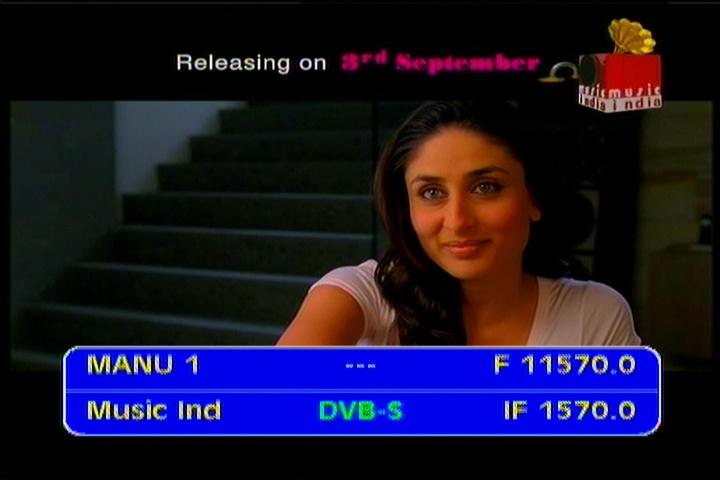

                                   Insat 4B at 93.5°E - KU Asia footprint : 11 490 V DD Direct + India
                         IF data                                                     Q data                                                    NIT data

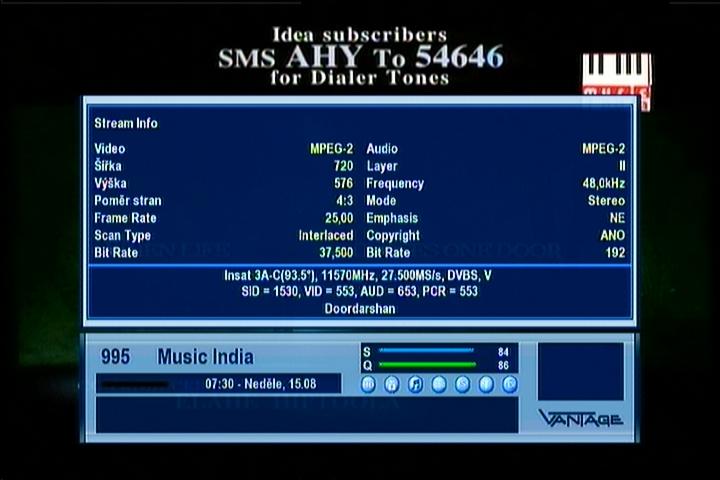

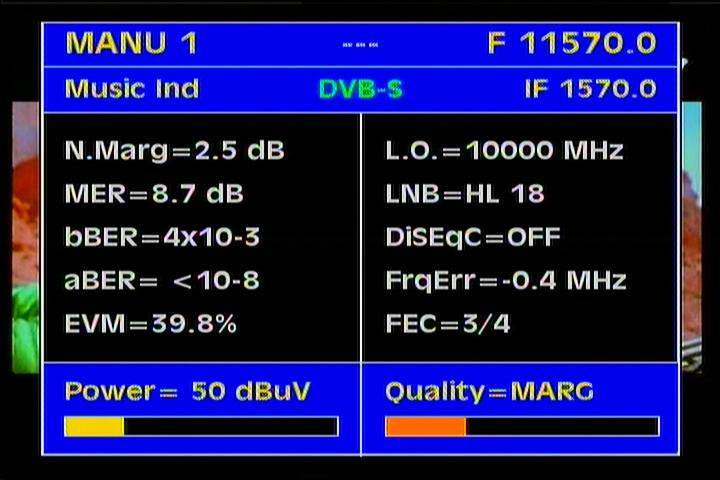

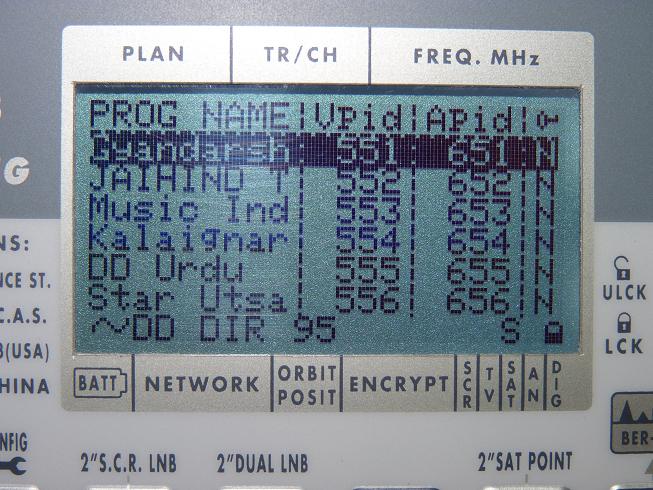

                              Insat 4B at 93.5°E - KU Asia footprint : 11 570 V DD Direct + India
                         IF data                                                     Q data                                                    NIT data

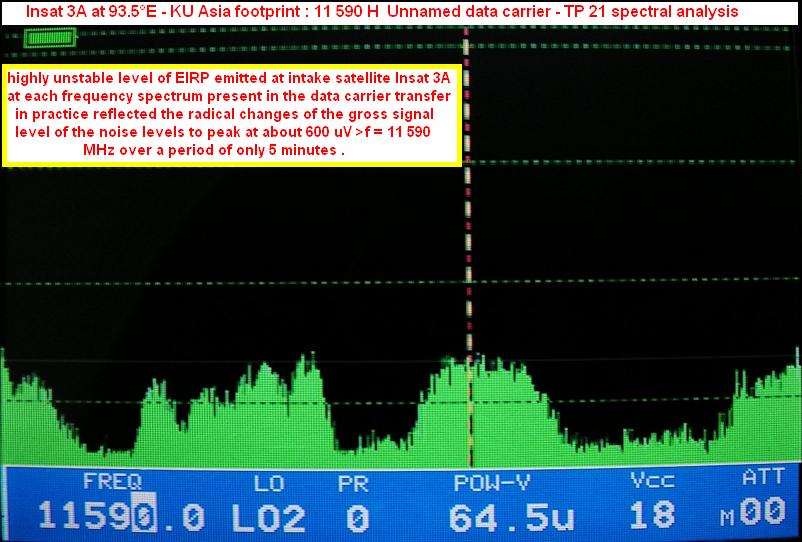

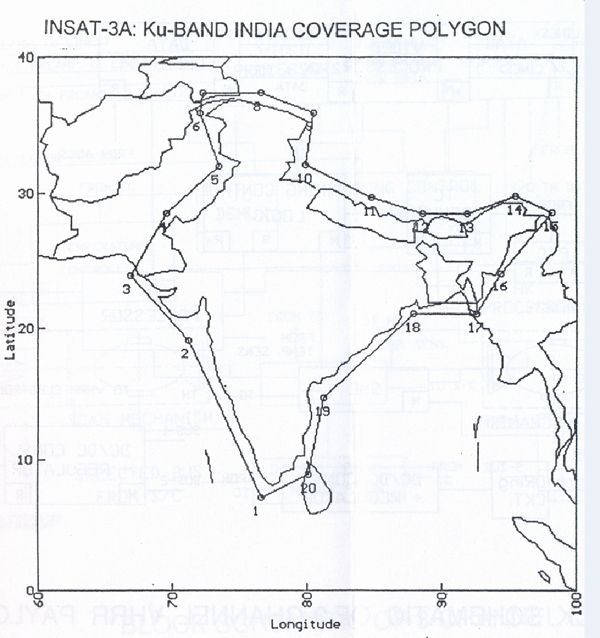

Insat 3A at 93.5°E-footprint of the KU band : spectral analysis & footprint & actively carriers

               Insat 3A spectral analysis                       Insat 3A footprint                          Insat 3A : locked data carrier
     active range : 11 450 - 11 700 MHz           Asia,Middle East,Europe,Africa        all locked data streams are constantly
                                                                                                                                                     present in the spectrum

Insat 3A/4B at 93.5°E-DD Direct Plus : TV List

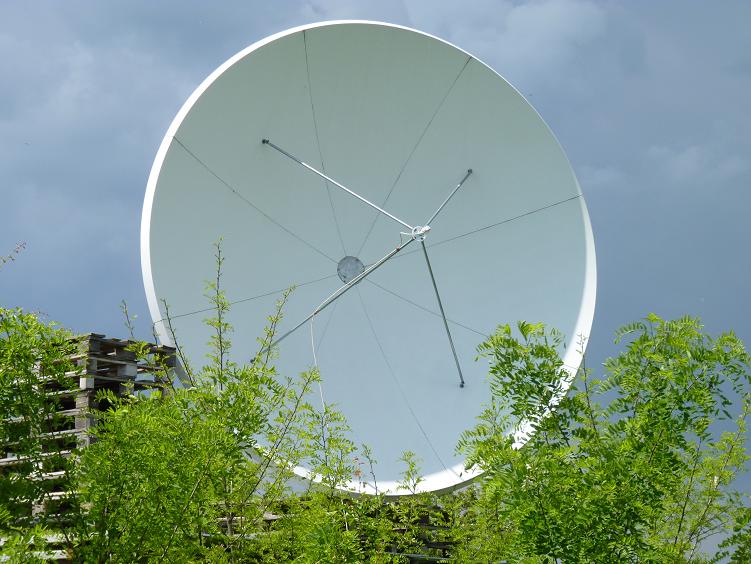

Insat 4B at 93.5 E_indian footprint-PF 370 cm

-Frequency-	----------Provider/Channel----------	---SR---	---FEC---	---Footprint---	---Antenna---	---DVB/Encryption---

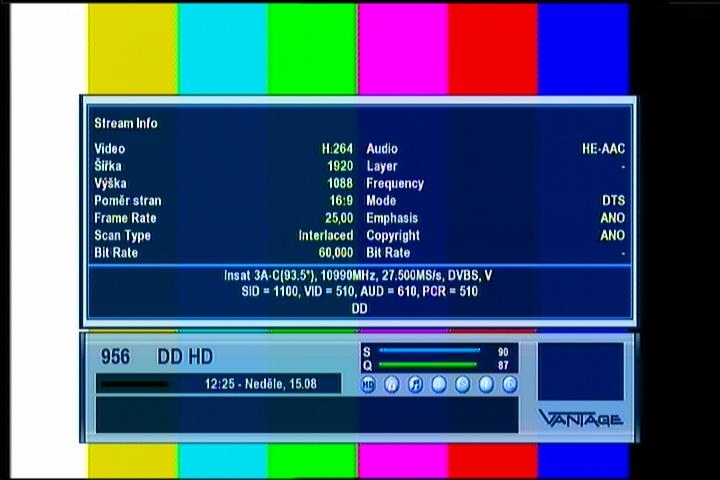

10 990 -V-	DD Direct+ India	27 500	3/4	4B India	300-500+ cm	DVB
	DD SPORTS					FTA
	DD INDIA					FTA
	DD BHARATI					FTA
	DD BANGLA					FTA
	DD CHANDANA					FTA
	DD Girnar					FTA
	DD KASHIR					FTA
	DD National					FTA
	B4U Movies TV					FTA
	DD Aastha Bhajan					FTA
	Sanskar tv					FTA
	DD News					FTA
	DD National					FTA
11 030-V-	SUN Direct DTH Service India	30 000	3/4			DVB-S2/8PSK
	Zee Studio					MPEG-4/HD/Irdeto
	Gemini TV					MPEG-4/HD/Irdeto
	SUN Music					MPEG-4/HD/Irdeto
	SUN TV					MPEG-4/HD/Irdeto
	KTV					MPEG-4/HD/Irdeto
	Discovery HD India					MPEG-4/HD/Irdeto
	Star Movies India					MPEG-4/HD/Irdeto
	National Geographic HD India					MPEG-4/HD/Irdeto
11 070 -V-	DD Direct+ India	27 500	3/4	4B India	300-500+ cm	DVB
	DD ORIYA					FTA
	DD PODHIGAI					FTA
	DD SAPTAGIRI					FTA
	DD PUNJABI					FTA
	LOK SABHA					FTA
	SHAKTI TV					FTA
	DD NORTH EAST					FTA
	DD SAHYADRI					FTA
	DD RAJYA SABHA					FTA
	DD MALAYALAM					FTA
	Dangal tv					FTA
	Zee Salaam					FTA
	Sadhna tv					FTA
11 110 -V-	SUN Direct DTH Service India / left

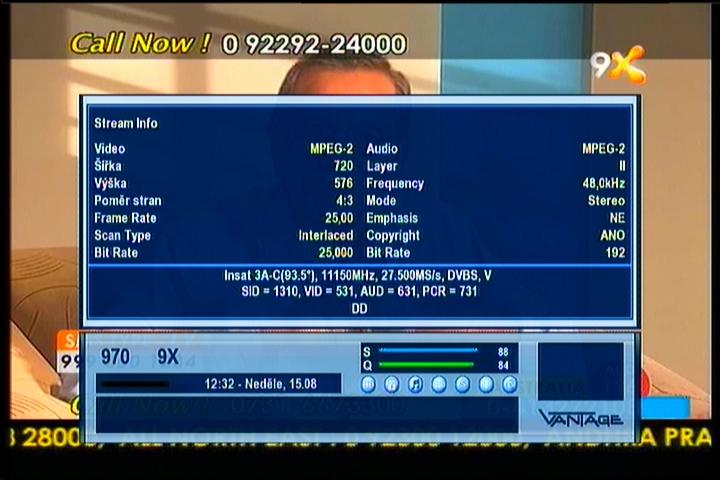

11 150 -V-	DD DIRECT+ India	27 500	3/4	4B India	300-500+ cm	DVB
	9X					FTA
	9XM					FTA
	Time TV					FTA
	VYAS TV					FTA
	PTC News					FTA
	AASTHA					FTA
	ETC					FTA
	Whats on India					FTA
	TV 24 India					FTA
	Zee Jagran					FTA
	Cinema TV					FTA
	P7 News TV					FTA
	Day and Night News					FTA
11 490 -V-	DD Direct+ India	27 500	3/4	4B India	300-500+ cm	DVB
	DW TV					FTA
	DD News India					FTA
	AAlami Sahara					FTA
	NHK WORLD					FTA
	Firangi tv					FTA
	Russia today eng.					FTA
	Samay					FTA
	Enter 10 India					FTA
	Divya channel					FTA

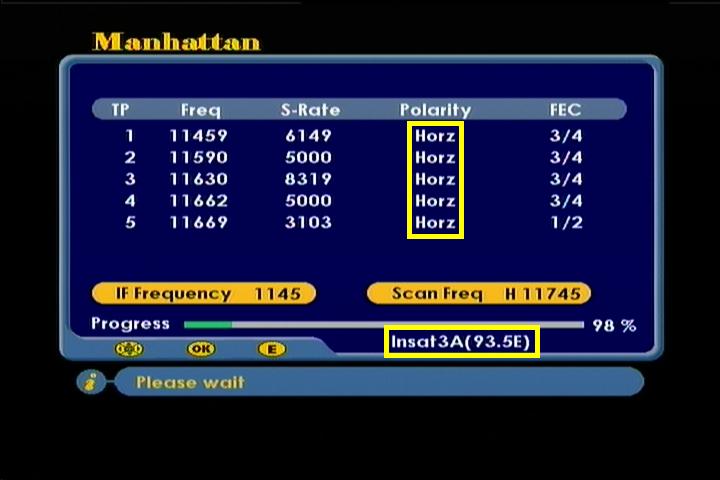

11 459 -H-tp 19	Data	6 149	3/4	3A India	300-500+ cm	data
11 494 -H-tp 20	feeds DD ...	1 500	3/4	3A India	350-500+ cm	FTA
11 500 -H-tp 20	feeds DD ...	1 500	3/4	3A India	350-500+ cm	FTA
11 505 -H-tp 20	feeds DD ...	2 000	3/4	3A India	350-500+ cm	FTA
11 570 -V-	DD DIRECT+ India	27 500	3/4	4B India	300-500+ cm	DVB
	Gyandarshan-1					FTA
	Kaatyayani TV					FTA
	News Express					FTA
	MH One					FTA
	DD India					FTA
	DD Urdu					FTA
	Star Utsav					FTA
	Zee Smile					FTA
	B4U Music					FTA
	Gyandarshan-2					FTA
11 590 -H-tp 21	Data	5 000	3/4	3A India	300-500+ cm	data
11 610 -V-	SUN Direct DTH Network India / left
11 629 -H-tp 21	Data	7 234	3/4	3A India	300-500+ cm	data
11 645 -V-	---
11 661 -H-tp 22	Data	5 000	3/4	3A India	300-500+ cm	data
11 668 -H-tp 22	Data	3 103	1/2	3A India	300-500+ cm	data
11 675 -V-	---

Insat 3A/4B at 93.5°E-DD Direct Plus : percent & stream data

Insat 4B at 93.5°E-DD Direct Plus : Video presentations

Insat 3A/4B at 93.5°E-DD Direct Plus : Update drawn up
